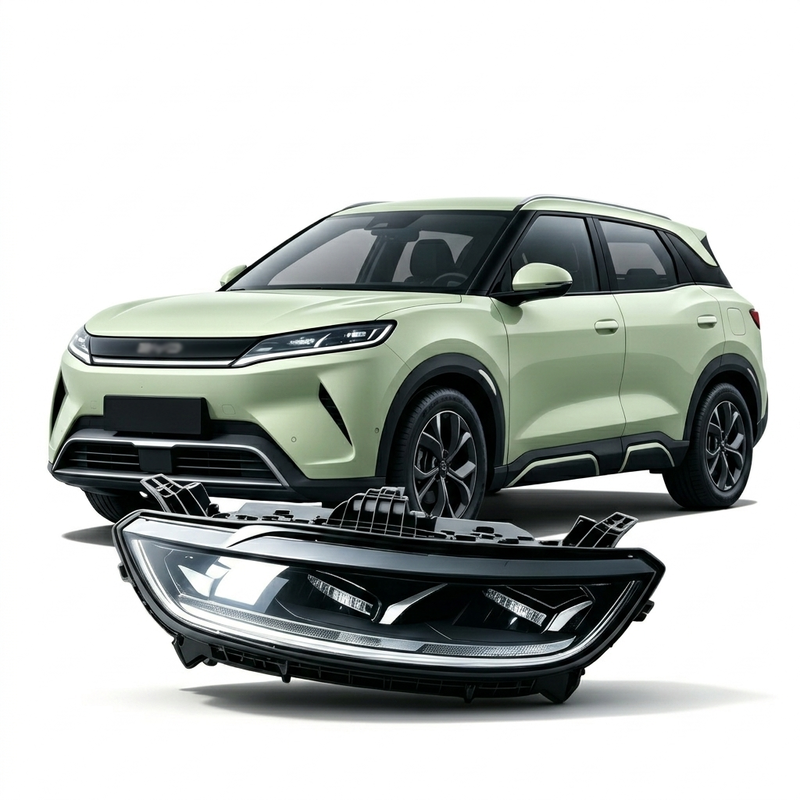

IP65 Waterproof Automobile Headlights Assembly Replacement For BYD Atto 2

For the 2024-2026 BYD Atto 2 (Yuan UP), the "Circle of Completion" Dragon Crystal LED signature is not just a light—it is the defining aesthetic feature of the front fascia. This premium illumination module is engineered to ensure that any maintenance or replacement activity results in zero visual or functional compromise. By strictly adhering to the architectural blueprints of the SC3E series (including both the standard reference SC3E-4121010/020 and the variant-specific B-suffix codes for the Intelligent Driver Edition), this assembly provides a 1:1 replacement that mirrors every nuance of the original factory lighting design.

Beyond its aesthetic fidelity, this module is built to operate as a transparent electronic extension of the Yuan UP’s onboard control network. Rather than relying on universal connectors, we have implemented a dedicated terminal architecture that bridges seamlessly with the vehicle's native 12V automotive grid and CAN-bus communication protocols. This ensures that the high-level intelligent lighting features—from the characteristic Dragon Crystal startup animations to complex cornering and adaptive responses—remain fully responsive through your original dashboard controls. By eliminating the necessity for wire-splicing, chassis retrofitting, or post-installation software re-coding, this component provides a true drop-in integration that safeguards the vehicle's electronic system integrity, allowing you to restore your Atto 2 to its showroom-fresh illumination quality without the risks associated with generic aftermarket solutions.

Engineering Advantages and Performance Specifications
Chassis-Matched Geometry and Electronic Sync
Every mounting lug and connector terminal is digitally mapped to the Yuan UP’s proprietary chassis architecture, ensuring a 1:1 hardware match across all trim levels, including the 2025 Intelligent Driver Edition. By integrating the factory-specified CAN-bus handshake logic, the module maintains absolute electronic compatibility with the Yuan UP’s 12V control unit, enabling plug-and-play installation that preserves all native lighting intelligence—from automatic dusk-sensing triggers to integrated headlight leveling—without requiring post-installation diagnostic calibration.

Dragon Crystal Optical Fidelity
The module faithfully reproduces the iconic "Circle of Completion" aesthetic, featuring a split-beam matrix architecture that honors the Yuan UP’s unique design language. Beyond its visual identity, the assembly utilizes high-precision reflector geometry to achieve a consistent, flicker-free illumination field. This solid-state diode array is rated for over 50,000 hours of peak performance, providing a maintenance-free upgrade that adheres to the stringent ECE R112, SAE J599, and CCC light-distribution benchmarks.

Range-Optimized Energy Calibration
Engineered with a lean 38W power threshold, the distribution matrix is surgically balanced into 14W low-beam, 14W high-beam, and 10W DRL circuits. This ultra-efficient load profile is specifically calibrated for electric vehicle battery preservation, ensuring peak luminous intensity without inducing parasitic drain. The 6000K daylight-spectrum projection is optimized for high-contrast road-surface definition, delivering a precise horizontal cut-off line that significantly enhances driver situational awareness while eliminating glare for oncoming traffic.

Atmospheric-Resilient Sealing Technology
Going beyond standard IP67 moisture resistance, the assembly incorporates an active pressure-equalization ventilation matrix. This factory-grade system continuously stabilizes internal atmospheric pressure to negate the thermal-shock condensation often triggered by sudden climate changes or high-pressure cleaning cycles. This creates a permanently hermetic barrier against corrosive monsoon moisture, abrasive road dust, and particulate intrusion, ensuring that the internal diode assembly remains in an optimal operating environment throughout its lifespan.

Molecular-Hardened Exterior Composites
The structural housing is injection-molded from vibration-dampened ABS plastic, chosen for its ability to absorb the intense mechanical stress associated with urban EV commuting. The Polycarbonate lens features a dual-stage, UV-stabilized hard coat—a molecular-level barrier that effectively shields the material against atmospheric oxidation, surface micro-scratching, and yellowing. This integration ensures the headlight maintains a showroom-finish clarity that complements the Yuan UP’s "Dragon Face" styling, including the signature black-trim connectivity and front-fascia fluid dynamics.
