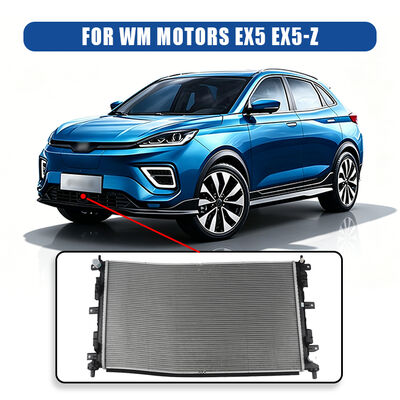

VDF0002300000-ZC Thermal Heat Exchanger Radiator Unit for Weltmeister EX5 Electric SUV
  • Name
  • Name
  • Name
  • Name

VDF0002300000-ZC Thermal Heat Exchanger Radiator Unit for Weltmeister EX5 Electric SUV

MOQ: 10
Price: 80 - 120RMB（a set）
Standard Packaging: 75 × 8 × 5cm, Gross Weight: 0.45 - 0.50 kg
Delivery Period: 5-8 work days
Payment Method: L/C,D/A,D/P,T/T,Western Union
Supply Capacity: 100000 piece/per month
Detail Information
Product Description
Detail Information
Place of Origin
Chinese mainland
Brand Name
Weltmeister
Certification
IATF 16949:2016/CCC /E-Mark/ISO 9001:2015
Model Number
Weltmeister EX5
Suitable For Car:
Weltmeister
Applicable Mod:
Weltmeister EX5
OEM No:
VDF0002300000-ZC
Max Hydrostatic Burst Pressure:
Exceeds 250 KPa Safety Limit
Coolant Compatibility:
Low-Conductivity OAT Ethylene Glycol
Thermal Operating Envelope:
-40°C To +125°C Continuous Limit
Core Structure Architecture:
Single-Row Micro-Channel Downflow Matrix
Tube Wall Thickness:
0.28 Mm High-Frequency Welded Aluminum
Core Brazing Process:
Nocolok Controlled Atmosphere Brazing (CAB)
Highlight:

Weltmeister EX5 heat exchanger radiator

,

electric SUV thermal radiator unit

,

car heat exchanger with warranty

Product Description

VDF0002300000-ZC Thermal Heat Exchanger Radiator Unit for Weltmeister EX5 Electric SUV


Product Introduction

Specifically manufactured for the high-voltage thermal system of the Weltmeister (WM Motor) EX5 and EX5-Z electric SUV series, this front-mounted fluid cooling assembly directly replaces original equipment part VDF0002300000-ZC. Built around a high-purity aluminum alloy matrix integrated with fortified composite side tanks, it provides stable fluid temperature control across the drive motor, power electronics, and high-energy battery coolant loops.


Specification

OE Reference Part Number VDF0002300000-ZC
Heat Dissipation Capacity 25 kW - 35 kW (Nominal EV System Load)
End Tank Material PA66 + 30% Glass Fiber Reinforced Polyamide
Operating Pressure Rating 90 kPa – 130 kPa Nominal Working Range
Compatible Vehicle Models Weltmeister / WM Motor EX5 & EX5-Z Electric SUV
Core Material Composition AA3003 Corrosion-Resistant Aluminum Alloy
Salt Spray Endurance >96 Hours Corrosion Resistance (ASTM B117)
Fluid Port Specs Quick-Connect Fitting (OD 28 mm)
Vibration Resistance Rating ISO 16750-3 Automotive Vibration Standard Passed


Key Features

OEM-Grade Digital Blueprint Matching: Reverse-engineered via 3D optical laser scanning against original factory 10413522-PT housings. Ensures precise mounting bracket registration, original fan shroud clip-in alignment, and zero-strain fitting for quick-release coolant lines.

Continuous-Duty Fleet Reliability: Engineered specifically for the high-mileage thermal demands of commercial fleet EVs. The core incorporates high-frequency welded AA3003 aluminum micro-channel tubes to maintain low internal fluid pressure drop (<15 kPa @ 40 L/min) during intensive DC fast-charging sessions.

Thermal Shock & Creep Resistance: End tanks are injection-molded using PA66-GF30 (30% short-glass-reinforced polyamide) with automated EPDM gasket crimping. Designed to withstand continuous thermal cycling from -40°C to +125°C without seam distortion, plastic embrittlement, or seal failure.

100% Automated Pressure & Leak QC: Every assembly undergoes automated helium mass spectrometer leak detection and dynamic pressure-decay testing at 2.5 Bar before leaving the production line, ensuring zero micro-fissures and compliance with ISO 16750 automotive vibration and sealing standards.


Neta U Spare Parts List

OEM Number English Name
10423089-PT Head lights for Roewe Ei5



VDF0002300000-ZC Thermal Heat Exchanger Radiator Unit for Weltmeister EX5 Electric SUV

VDF0002300000-ZC Thermal Heat Exchanger Radiator Unit for Weltmeister EX5 Electric SUV

VDF0002300000-ZC Thermal Heat Exchanger Radiator Unit for Weltmeister EX5 Electric SUV

VDF0002300000-ZC Thermal Heat Exchanger Radiator Unit for Weltmeister EX5 Electric SUV

VDF0002300000-ZC Thermal Heat Exchanger Radiator Unit for Weltmeister EX5 Electric SUV
