2069016300-ZC E-Drive System Fluid Heat Exchanger for Geely Geometry A G6 / Emgrand GSE
  • Name
  • Name
  • Name
  • Name

2069016300-ZC E-Drive System Fluid Heat Exchanger for Geely Geometry A G6 / Emgrand GSE

MOQ: 10
Price: 80 - 120RMB（a set）
Standard Packaging: 75 × 8 × 5cm, Gross Weight: 0.45 - 0.50 kg
Delivery Period: 5-8 work days
Payment Method: L/C,D/A,D/P,T/T,Western Union
Supply Capacity: 100000 piece/per month
Detail Information
Product Description
Detail Information
Place of Origin
Chinese mainland
Brand Name
Geely
Certification
IATF 16949:2016/CCC /E-Mark/ISO 9001:2015
Model Number
Geely Geometry A G6
Suitable For Car:
Geely
Applicable Mod:
Geely Geometry A G6 / Emgrand GSE
OEM No:
2069016300-ZC
Operational Thermal Range:
-40°C To +125°C Continuous Limits
Max Coolant Flow Throughput:
Up To 80 Liters / Minute High-Velocity Line
Micro-Channel Tube Wall Spec:
0.28 Mm High-Frequency Welded Aluminum
Tank Sealing Interface:
Automated Precision Crimping With EPDM Gaskets
Hose Connection Port Diameter:
OD 28 Mm Quick-Latch Fittings
Quality Leak Test Verification:
100% Helium Mass Spectrometer Inspected
Highlight:

E-Drive System Fluid Heat Exchanger for Geely

,

Geely Geometry A G6 heat exchanger

,

Emgrand GSE fluid heat exchanger

Product Description

2069016300-ZC E-Drive System Fluid Heat Exchanger for Geely Geometry A G6 / Emgrand GSE


Product Introduction

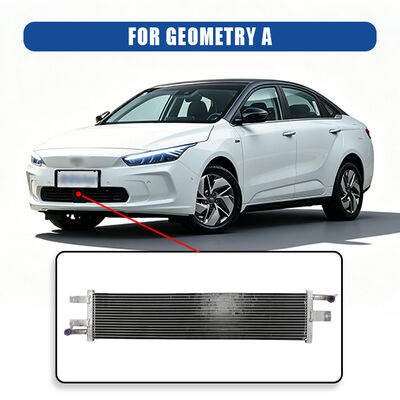

Engineered specifically for the high-power-density electric drive architecture of Geely’s EV platform—including the Geometry A, Geometry G6, and Emgrand GSE—this primary e-drive fluid heat exchanger directly replaces OEM part 2069016300-ZC. It provides active temperature regulation for the traction motor assembly, power control unit (MCU), and onboard charging electronics.


Specification

Parameter / Engineering Metric Specification / Factory Standard
OEM Cross-Reference Number 2069016300-ZC
Target Vehicle Application Geely Geometry A / Geometry G6 / Emgrand GSE EV
System Thermal Loop E-Drive Motor & MCU Power Electronics Loop
Heat Exchanger Architecture Single-Row Micro-Channel Downflow Core
Core Alloy Material AA3003 Corrosion-Resistant Aluminum
Composite Vessel Material PA66 + 30% Glass-Fiber Reinforced Nylon
Brazing Technology Nocolok Controlled Atmosphere Brazing (CAB)
Max Working Pressure Rating 90 kPa – 130 kPa Nominal System Pressure
Hydrostatic Burst Test Limit Exceeds 250 kPa Safety Threshold
Coolant Compatibility Low-Conductivity OAT Ethylene Glycol Formulations


Key Features

3D-Mapped OE Geometry Alignment: Built using direct spatial scans of the original 2069016300-ZC housing, guaranteeing precise retention pin seating, factory fan shroud mounting, and stress-free alignment for quick-disconnect coolant lines.

Low-Hydraulic-Resistance Micro Channels: Built with high-frequency welded AA3003 aluminum tubing designed to keep internal pressure loss below 15 kPa at nominal flow rates, ensuring steady coolant turnover under heavy thermal loads.

Structural Polymer Tank Assemblies: End tanks are injection-molded from heat-stabilized PA66-GF30 engineering composite and crimped with dynamic EPDM seals to prevent seam leakage under continuous pressure pulses and thermal expansion.

Dynamic Helium Mass Spectrometer Testing: Every production unit is subjected to automated multi-bar pressure decay and helium trace-gas inspection prior to boxing, eliminating micro-porosity and guaranteeing long-term fluid containment.


2069016300-ZC E-Drive System Fluid Heat Exchanger for Geely Geometry A G6 / Emgrand GSE

2069016300-ZC E-Drive System Fluid Heat Exchanger for Geely Geometry A G6 / Emgrand GSE

2069016300-ZC E-Drive System Fluid Heat Exchanger for Geely Geometry A G6 / Emgrand GSE

2069016300-ZC E-Drive System Fluid Heat Exchanger for Geely Geometry A G6 / Emgrand GSE
