Primary Range Extender Engine Cooling Radiator Tank Fits Li Auto Li ONE Part M01-130100001-PT

Products

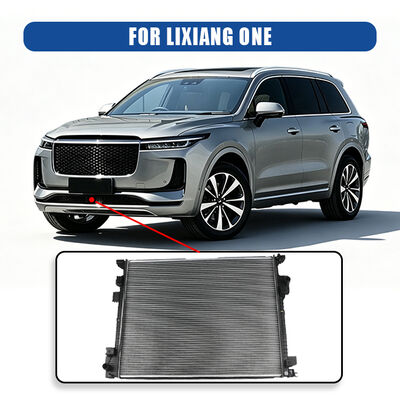

Primary Range Extender Engine Cooling Radiator Tank Fits Li Auto Li ONE Part M01-130100001-PT

MOQ:	10
Price:	80 - 120RMB（a set）
Standard Packaging:	75 × 8 × 5cm, Gross Weight: 0.45 - 0.50 kg
Delivery Period:	5-8 work days
Payment Method:	L/C,D/A,D/P,T/T,Western Union
Supply Capacity:	100000 piece/per month

Detail Information

Product Description

Detail Information

Place of Origin

Chinese mainland

Brand Name

Li Auto

Certification

IATF 16949:2016/CCC /E-Mark/ISO 9001:2015

Model Number

Li Auto Li ONE

Suitable For Car:

Li Auto

Applicable Mod:

Li Auto Li ONE

OEM No:

M01-130100001-PT

Fluid Pressure Drop:

< 15 KPa @ 40 L/min Flow Velocity

Nominal Operating Pressure:

90 KPa – 130 KPa System Pressure Range

Core Architecture Design:

High-Efficiency Micro-Channel Downflow Matrix

Thermal Cycling Endurance:

> 5,000 Cycles (-40°C To +120°C Shock)

Assembly Dry Net Weight:

Approx. 3.85 Kg (± 0.1 Kg)

Packaging Spec & Protection:

5-Ply Corrugated Box With Molded Foam Inserts

Highlight:

Li ONE radiator tank

engine cooling range extender

car radiator tank with warranty

Product Description

Primary Range Extender Engine Cooling Radiator Tank Fits Li Auto Li ONE Part M01-130100001-PT

Product Introduction

Specifically constructed for the dedicated high-temperature engine circuit of the Li Auto ONE (EREV), this heavy-duty primary radiator serves as a direct factory-spec replacement under OEM part number M01-130100001-PT. It manages the aggressive thermal rejection requirements of the 1.2T range-extender generator engine during high-load power generation modes.

Specification

Parameter / Engineering Metric	Specification / Factory Standard
OE Part Reference Number	M01-130100001-PT
Compatible Vehicle Application	Li Auto ONE
Dedicated Cooling Loop	High-Temperature Range-Extender Engine Circuit
Matrix Alloy Specification	Premium AA3003 Corrosion-Resistant Aluminum
End Tank Material	PA66 + 30% Short-Glass Fiber Reinforced Nylon
Core Assembly Process	Controlled Atmosphere Nocolok Aluminum Brazing (CAB)
Working Fluid Compatibility	Low-Conductivity Organic Acid Technology (OAT) Coolant
Rated Fluid Port Specification	Quick-Latch Coupling Ports (28 mm OD Standard)
Working Pressure Rating	90 kPa – 130 kPa Normal System Pressure Range
Burst Testing Standard	Hydrostatic Pressure Tested Exceeding 250 kPa

Key Features

High-Load Combustion Thermal Shedding: Engineered with optimized cooling fin geometry specifically tuned to dissipate sustained high-kW thermal output generated by the range-extender engine during highway cruising and heavy incline driving.

Factory Alignment Precision: Reverse-engineered against original M01-130100001-PT CAD dimensions to guarantee exact lower frame isolator positioning, zero-play fan shroud clip locking, and direct quick-connect hose pairing.

Glass-Reinforced Structural Vessels: End tanks are injection-molded from thermal-stabilized PA66-GF30 polymer to resist structural distortion, joint fatigue, and material degrading under high-temperature coolant flow.

Pressurized Sealing Rigor: Fully assembled units undergo automated multi-stage pressure decay testing to confirm seamless header plate crimping and 100% fluid containment prior to dispatch.

LI AUTO ONE Spare Parts List

OEM Number	English Name
M01B-41210012-PT	Head lights for LI AUTO ONE 2021
M01-41210001-CC	Head lights for LI AUTO ONE 2020
M01-90000320-ZC	Radiator Support Bracket Front Left L for Li Auto ONE
M01-13010001-PT	Fluid Cooling Radiator Assembly Fits Li Auto Li ONE

Primary Range Extender Engine Cooling Radiator Tank Fits Li Auto Li ONE Part M01-130100001-PT
