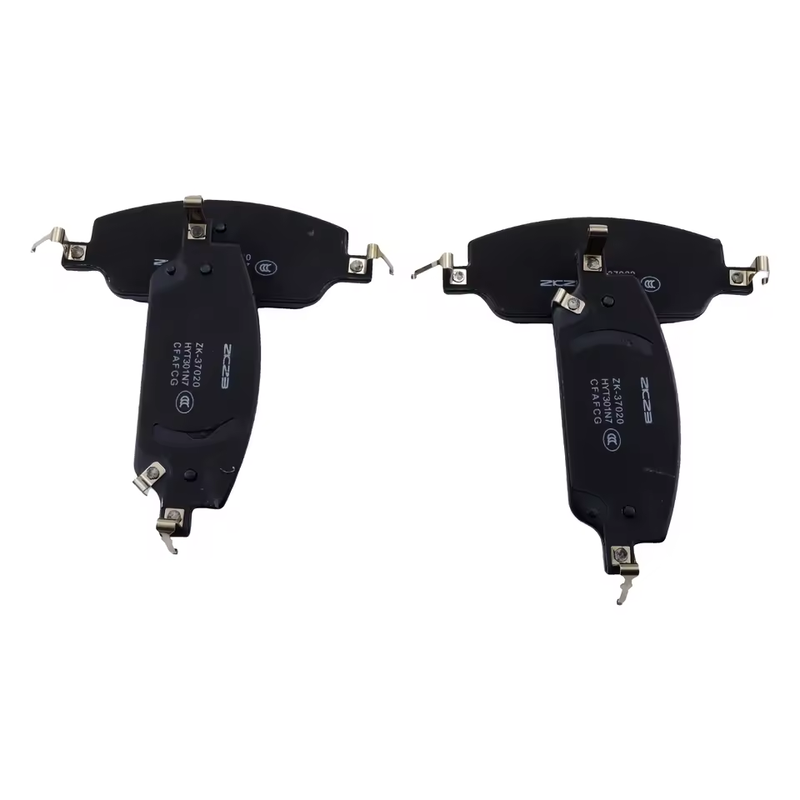

NAO Ceramic Semi Metallic Brake Linings Pads Replacement For BYD ATTO 3

NAO Low Metallic Brake Pads for BYD ATTO 3 Low Copper SC2E-3501010

Product Introduction

Structurally calibrated to interface with the high-torque, front-wheel-drive dynamics of the BYD ATTO 3 (e-Platform 3.0) chassis, these steering-axis braking components deliver a regulated mechanical restoration for independent workshops and global regional distributors. The formulation utilize a low-metallic composite matrix optimized for consistent thermal coupling, ensuring a decisive initial brake bite and high fading resistance during the rapid transitions between BYD's regenerative deceleration and mechanical hardware engagement. Stamped to align precisely with original equipment reference SC2E-3501010, the modules fit directly within the factory front floating caliper housings without binding or manual layout adjustments. This low-copper matrix supplies local trade networks, fleet buyers, and specialized EV owners with a field-verified, performance-stable replacement component engineered for standard maintenance cycles.

Specification

Core Selling Points

Axial Stamping Compliance & Carrier Slide Interlock
This steering-axis friction module is engineered exclusively for the front-wheel braking architecture of the BYD ATTO 3 (e-Platform 3.0). Stamped strictly to original equipment reference indicators SC2E-3501010, the steel backing plates restrict physical clearance boundaries to standard manufacturing tolerances. This precise geometric profiling prevents lateral shifting and vertical rattle within the factory floating caliper carriers, securing standard pad sliding displacement without requiring manual workshop grinding or edge filing.

Decisive Kinetic Friction Coefficient via Low-Metallic Compound
The formulation utilizes a high-density low-metallic matrix specifically synthesized for front-wheel-drive electric platforms subject to elevated instantaneous torque loads. To counter the unique operating profiles where BYD’s regenerative braking frequently alternates with mechanical hardware engagement, the composite material ensures a decisive initial brake bite. By maintaining an active, non-glazing friction interface against the rotor, this formula eliminates the typical cold-response delays inherent to traditional soft ceramic fillers under emergency deceleration.

Front-Axle Weight Transfer Thermal Management
Engineered to withstand the intense dynamic front-axle load transfer characteristic of compact electric utility vehicles, the material chemistry exhibits high resistance to high-temperature fading. The compound stabilizes friction torque output across prolonged stop-and-go cycles or heavy descending gradients under variable gross vehicle weights (GVW). The backing layout features a pre-fixed, high-density nitrile-rubber acoustic barrier shim that restricts localized thermal energy migration from the iron substrate to the caliper piston seals, mitigating the risk of hydraulic fluid vulcanization.

Controlled Interfacial Erosion & Shearing Integrity
Developed to maximize inventory predictability for global distribution logistics and commercial fleet operators, the compound provides a regulated, linear material wear curve. By establishing a uniform, non-abrasive contact path, the formulation minimizes un-loaded rotor face scoring, extending standard vehicle maintenance intervals. The manufacturing process utilizes an advanced thermal bonding technique ensuring high structural shear resistance, guaranteeing the friction block remains securely bonded to the backing core during abrupt deceleration spikes.

International Low-Copper Regulatory Conformity
The chemical formulation restricts copper mass content to less than or equal to 5%, achieving verified compliance with international low-copper environmental legislation. This regulated material configuration allows e-commerce regional stockists and bulk procurement buyers to distribute the product natively within environmentally restricted markets without encountering supply-chain customs hurdles or regional compliance liability, preserving high marketability across diverse automotive aftermarket networks.

Installation

Powertrain Inactivation & Structural Lifting Boundaries
Prior to hardware isolation, position the vehicle on a heavy-duty chassis lift. Ensure the primary high-voltage ignition system is completely deactivated, and isolate all smart keys or digital proximity devices outside the detection radius. This terminal isolation prevents unexpected automated electronic hydraulic pump calibration, automatic piston initialization cycles, or parking brake actuator tracking during component teardown. Position the hoist pads precisely at the factory-designated front structural markers, ensuring absolute physical clearance from the under-floor traction battery enclosure to prevent structural distortion to the energy cell matrix.

Master Cylinder Volumetric Monitoring & Caliper Uncoupling
Remove the primary brake fluid reservoir cap located within the front non-combustion storage bay. Monitor the fluid level continuously before and during piston compression to prevent overflow contamination onto surrounding high-voltage electronic wire harnesses. Extract the steering-axis wheel assemblies. Unbolt the floating guide slide bolts from the front hub knuckle carrier. Suspend the heavy iron caliper housing securely using an engineering tension-free support hook attached to the upper chassis frame, ensuring no tensile strain or twisting forces impact the flexible high-pressure fluid delivery lines.

Slideway Desaturation & Parallel Piston Reset
Slide the degraded friction elements out of the carrier slots. Apply a highly volatile, residue-free chemical brake cleaner to dissolve cumulative metallic wear dust, atmospheric road salts, and localized oxidation from the carrier slides. Use a wire brush to restore the stainless-steel slide channels to a smooth, flat metal profile. Deploy a calibrated, flat-face compression tool to press the caliper piston back into its housing under a slow, progressive force, preventing back-pressure spikes within the electronic hydraulic brake booster components. Fit the new front-axis low-metallic modules natively into the clean channels, ensuring the pre-fixed high-density anti-vibration shims sit perfectly parallel with the rotor face. Torque all hardware strictly to factory technical specs.

Hydraulic Alignment & Controlled Thermochemical Bedding-In
With the vehicle remaining stationary, perform a sequence of controlled, deliberate, full-stroke depressions of the brake pedal to advance the caliper pistons progressively until the friction lining makes unified contact with the rotor surface. To achieve a valid friction transfer layer given the ATTO 3's heavy reliance on motor deceleration, configure the driving matrix through the cockpit interface to its lowest energy recovery setting (Regen Low) for the testing phase. Conduct a progressive series of standard, non-emergency, moderate-to-high speed-reduction stops on a low-traffic route to execute the initial thermochemical burnishing of the low-metallic matrix, ensuring uniform material transfer across the rotor faces and preventing localized surface glazing.

Bulk Release Qualification & Settlement Directive:

Manufacturing Boundary Validation & Limited Indemnity Truncation
This front-axis low-metallic friction configuration is released under a localized structural compliance boundary restricting manufacturer liability to 12 months or an absolute 30,000-kilometer vehicle displacement milestone, whichever benchmark expires first from the documented date of workshop installation. Factory structural indemnity applies exclusively to raw mechanical component failures verified by digital micro-gauge inspection. Covered manufacturing variances are limited to: chemical binding delamination between the low-metallic block and the steel backing substrate, material core stress fractures under normal non-competitive operational cycles, or physical backing plate stamping errors that exceed original factory carrier slide dimensions. Remedy is strictly confined to the provision of an identical replacement unit, excluding all secondary costs such as international shipping re-routing, local workshop labor surcharges, or vehicle downtime losses. Due to the high-torque, front-wheel-drive dynamics of the e-Platform 3.0 chassis, all manufacturer liability is automatically truncated if the units are operated under common field misapplications, specifically: contact with un-surfaced, grooved, or out-of-round brake rotors; surface vitrification induced by failure to execute the designated low-recovery high-load bedding procedure; asymmetric lining erosion caused by un-serviced caliper guide sliders; or physical backing distortions resulting from incorrect hub assembly alignment.

Wholesaler Consignment Audits & Digital Cross-Reference Protocols
To maintain strict administrative logging accuracy across global wholesale distribution networks, all notifications regarding shipping volume discrepancies, catalog application variations, or transit-induced physical displacement must be finalized via our commercial data hub within 168 hours (7 days) post-delivery. Affected inventory units must remain completely unmounted, free of any anti-squeal chemical grease applications, and preserved within the original batch packaging to retain technical credit eligibility. For procurement directors, regional stockists, and multi-channel e-commerce operators utilizing electronic ERP catalogs, we provide raw master CSV application spreadsheets and 2D dimensional engineering blueprints. This digital interface allows inventory managers to perform virtual application cross-referencing natively within their centralized database architecture without unboxing physical inventory. Direct technical liaison regarding hardware tracking parameters, fluid displacement thresholds, and vibration isolation alignment is accessible for contract technicians during standard fleet maintenance intervals.
