| Brand Name: | Neta |
| Model Number: | Neta V |
| MOQ: | 10 |
| Price: | 80 - 120RMB（a set） |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

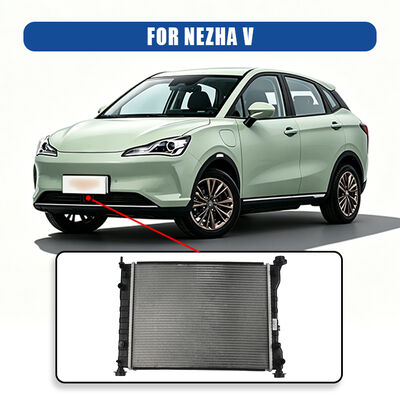

EV Cooling System Water Tank Radiator Assembly for Neta V Series S11-2-2127010-ZC
Product Introduction
Specifically constructed for the Neta V electric crossover platform, this front-end thermal dissipation module serves as a direct OE-spec swap for reference number S11-2-2127010-ZC. Built around a high-density, multi-channel aluminum heat-sink matrix mated to fortified composite end vessels, it regulates operational fluid temperatures across the electric drive unit and high-voltage power management hardware.
By utilizing high-flow internal fluid passages, this assembly rapidly transfers heat energy away from sensitive power electronics during rapid acceleration, sustained incline towing, and high-kilowatt DC fast-charging sessions.
Specification
| Parameter / Feature | Technical Specification |
| Max System Burst Pressure | Exceeds 250 kPa Hydrostatic Limit |
| Cooling Circuit Application | EV Drive Motor, MCU Inverter & OBC Thermal Loop |
| Vehicle Compatibility | Neta V Series |
| Surface Treatment | Anti-Corrosion Natural Aluminum Finish |
| Inlet / Outlet Connection | Quick-Latch Hose Ports (OD 28 mm) |
| Core Material Composition | AA3003 High-Transfer Aluminum Matrix |
| OE Interchange Number | S11-2-2127010-ZC |
| Brazing Technology | Nocolok Controlled Atmosphere Brazing (CAB) |
| Packaging Format | Double-Wall 5-Ply Corrugated Box with Protective Foam |
| Gasket & O-Ring Material | High-Grade EPDM Synthetic Rubber |
| Installation Interface | Direct Bolt-On Factory Alignment |
| Fluid Compatibility | Organic Acid Technology (OAT) Ethylene Glycol Coolant |
Key Features
Dimensional Precision & OE Fit: Scanned against original factory blueprints for part S11-2-2127010-ZC, guaranteeing seamless alignment with stock radiator support brackets, cooling fan shrouds, and OEM hose couplers.
Aerodynamic Louvered Fin Matrix: Features high-efficiency stamped louvered aluminum fins designed to disrupt laminar airflow boundaries, boosting thermal dissipation rates while keeping static backpressure to a minimum.
High-Stress Thermal Stability: Built with premium heat-stabilized polyamides and resilient elastomeric seals, engineered to absorb intense pressure pulses and harsh ambient thermal cycling without risking seam separation.
Mass Spectrometer Leak Inspection: Each completed cooling unit undergoes full-pressure automated helium trace-gas detection prior to boxing, eliminating the risk of micro-porosity and guaranteeing long-term coolant retention.
